Backups, schedules and retention

Backup now

On a server page, Backup now (operator role) starts a backup. The same thing from the API:

curl -X POST -H "Authorization: Bearer $KEY" http://localhost:8080/api/v1/servers/pg-main/backup

pgCellar runs two Barman commands, in this order:

barman backup pg-main
barman switch-wal --force --archive pg-main

It never uses barman backup --wait. On a quiet database the end of the backup sits in a WAL segment that is still being written, and --wait blocks until 16 MB of WAL appear or someone forces a switch. A backup that took 11 seconds could then wait 15 minutes. The forced switch closes that segment so the backup is restorable at once (chapter 13).

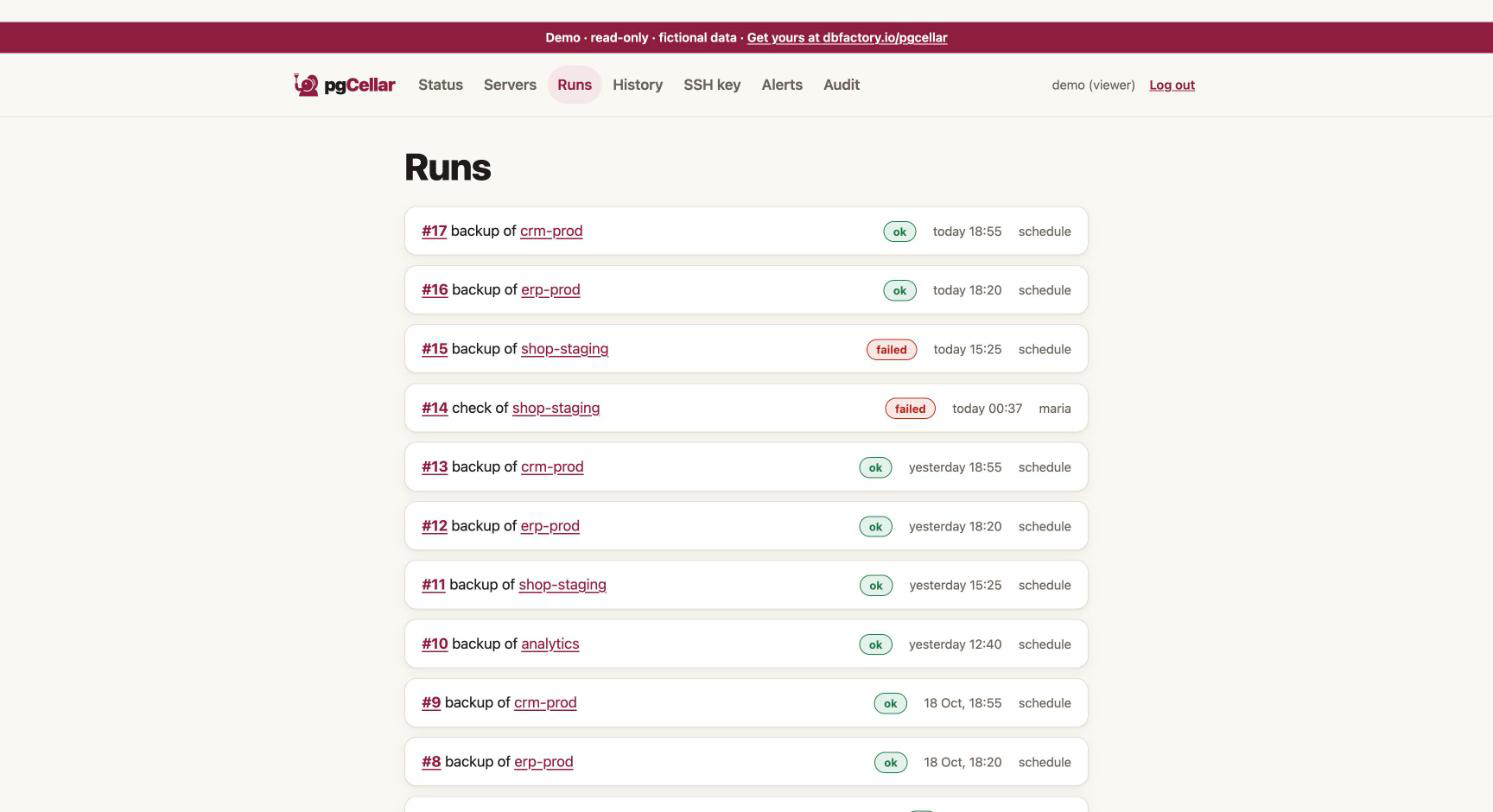

Everything runs in the background. The run appears on Runs with the output of each command, its exit code and its duration. A closed browser tab does not interrupt it. Only one backup per server runs at a time.

Runs lists only what was started from pgCellar (the console, the scheduler or the API). A backup taken with the barman command or with a host cron does not appear there; it does appear in the Backups list of the server page, which comes from Barman itself.

Schedules

You do not need cron on the host. pgCellar runs the schedules itself. The schedule of a server is one line:

servers:
  - name: pg-main
    schedule:
      backup: "daily 02:00"
      enabled: true

You can also set it in the server form (field Backup schedule, checkbox Enabled).

Syntax

Text	Means
`daily 02:00`	Every day at 02:00
`weekly sun 03:00`	Every Sunday at 03:00. Days: `mon tue wed thu fri sat sun`
`hourly`	At minute 0 of every hour
`every 6 hours`	Every 6 hours, at minute 0 (N from 1 to 23)
`30 1 * * 1-5`	A 5-field cron expression: minute, hour, day of month, month, day of week

Case and extra spaces do not matter. Times are 24 hours. A raw cron expression accepts lists (1,15), ranges (1-5) and steps (*/10). pgCellar checks it when you save; a typo is refused with a message.

Time zone. Schedules run in the time zone of the pgCellar process, which is the TZ environment variable of the container. The Compose file sets TZ: Europe/Brussels; change it to yours. The container default is UTC.

schedule.enabled absent means: on, as soon as a backup schedule is written. Set enabled: false to pause a server's schedule and keep the line.

The scheduler

The block scheduler: governs all schedules:

scheduler:
  enabled: true     # false = pgCellar starts nothing by itself
  catch_up: 6h      # a due time missed while pgCellar was stopped still runs if younger than this
  parallel: 1       # backups running at once, all servers together

How it behaves:

It wakes every 30 seconds and starts every backup whose due time has passed.
A due time runs once. The result of the last handled due time is stored, so a restart neither replays nor forgets it.
Catch-up. If pgCellar was stopped at 02:00 and starts at 03:30, the 02:00 backup still runs, because it is younger than catch_up (6 hours). Older than that, it is dropped. Several missed due times collapse into the latest one. catch_up: 0 turns catch-up off. A server you add later, or a schedule you just changed, counts from now: nothing is run for a past that was not missed.
Busy. If a manual backup is running on the same server when a due time arrives, the scheduled one is recorded as skipped and not retried. If all parallel slots are taken, the due time waits for the next tick and keeps its place.
parallel counts every backup in progress, manual ones included, because it protects the Barman host.
A skipped run is announced by an alert (chapter 8).

The server page shows Next backup and Last scheduled run.

Retention

Retention decides how long backups and their WAL are kept. Barman applies it, not pgCellar: Barman deletes obsolete backups at the end of each backup and during barman cron. pgCellar never runs barman delete for retention.

The server form has three fields:

Field	Barman line	Meaning
Recovery window (days)	`retention_policy = RECOVERY WINDOW OF 14 DAYS`	Keep enough backups to restore to any moment in the last 14 days
Redundancy (backups kept)	`retention_policy = REDUNDANCY 3`	Keep the 3 most recent backups
Minimum redundancy	`minimum_redundancy = 2`	Never delete below 2 backups, whatever the policy says

Use either a window or a redundancy, not both. The form and pgcellar check refuse both. 0 means "not set".

Advice:

A recovery window matches how people think: "I want to go back 14 days". Barman keeps the newest backup older than the window, so that the whole window is restorable.
Always set a minimum redundancy of at least 2. If backups start failing, retention would otherwise happily delete the last good ones.

The values are written to the Barman file when the form is saved. retention_policy_mode is left out, since Barman's default (auto) is what you want.

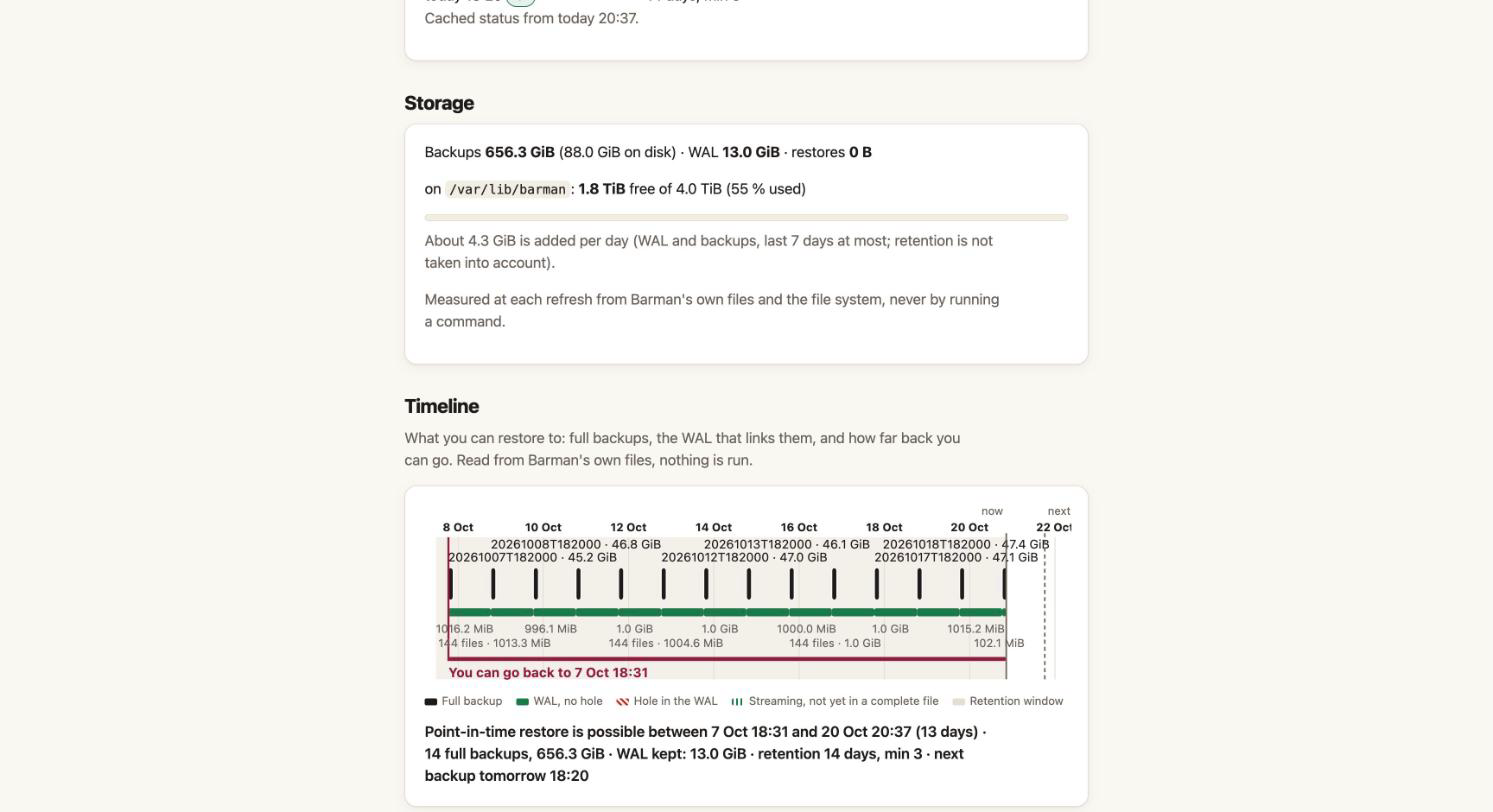

The Timeline marks the retention window on its axis; the Storage section (chapter 11) shows what the retention costs on disk.

Deleting a backup

On the server page, each complete backup has a Delete… button (admin). The row turns into a sentence with two buttons: Delete and Keep it. It runs:

barman delete pg-main 20261020T020001

pgCellar does not second-guess Barman. If the delete would go below minimum_redundancy, Barman refuses and its message comes back unchanged (HTTP 409 in the API). The backup id must look like 20261020T020001. The command runs even if you close the tab, and it is audited as backup.delete.

The API form:

curl -X DELETE -H "Authorization: Bearer $KEY" http://localhost:8080/api/v1/servers/pg-main/backups/20261020T020001

Deleting is final. Deleting a backup also lets Barman remove the WAL no remaining backup needs.

Reading the result

A server is red when a check fails, there is no good backup, or the last backup is older than twice the limit; orange for any other problem (last attempt failed, backup older than alerts.max_backup_age, WAL not received for too long). The limits are in alerts: (26 hours for a backup, 24 hours for WAL, when you set nothing). Red means "act now"; orange means "look at it today".
