Users, roles, API keys and the API

People sign in to the console with a user. Programs call the API with an API key. Both have one of three roles.

Roles

The audit log is admin-only because it contains the exact command lines that were run. A restore archive is a full copy of the database, so downloading it needs the operator role.

At least one user must have the admin role, or pgCellar refuses to load the file.

Users

Users live in pgcellar.yaml. There is no user screen: you edit the file, and pgCellar picks the change up.

users:
  - name: admin
    role: admin
    password_hash: "$2a$10$..."
  - name: alice
    role: operator
    password_hash: "$2a$10$..."
  - name: bob
    role: viewer
    password_hash: "$2a$10$..."

Create a hash with:

read -rs PW; printf '%s\n' "$PW" | docker compose run --rm -T pgcellar hash-password

Minimum 8 characters. The hash is bcrypt; the password itself is never stored. Paste the hash into password_hash.

To remove a user, delete the entry; their access ends at the next request, because the role is read from the file on every request.

Sessions and sign-in

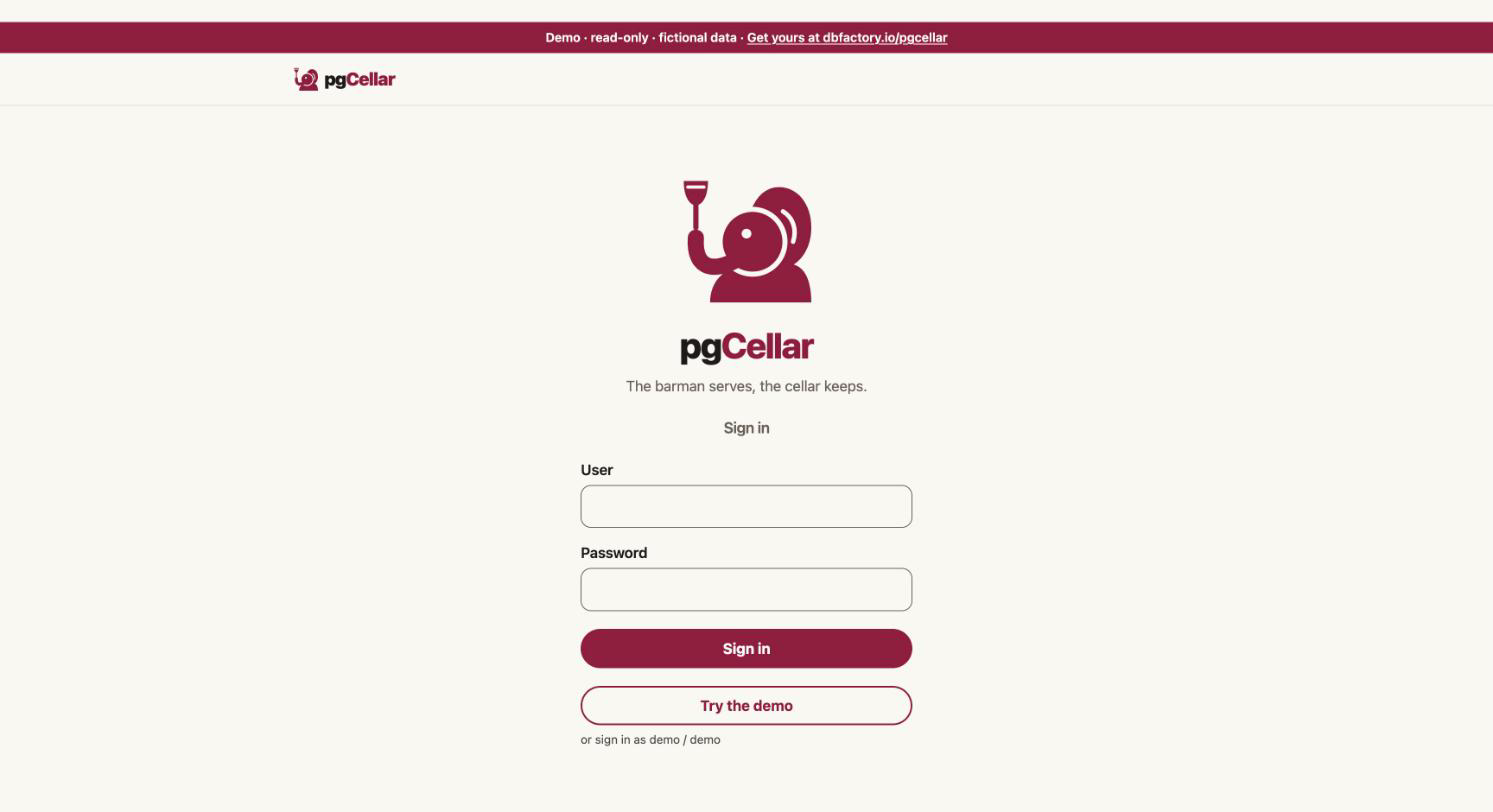

The console uses a cookie session valid for 24 hours. The login form is protected against password guessing (chapter 12). Each state-changing request carries a CSRF token. Log out with Log out in the top bar.

API keys

An API key is a long random string starting with pgc_. pgCellar stores only its SHA-256, in pgcellar.yaml. The key itself is shown once, when you create it.

docker compose exec pgcellar pgcellar apikey create --config /etc/pgcellar/pgcellar.yaml --name grafana --role viewer

The command prints the key and nothing else. Save it at once; there is no way to read it again. It writes the hash into pgcellar.yaml and commits the change to the configuration history, and the running server picks it up by itself. List the names and roles:

docker compose exec pgcellar pgcellar apikey list --config /etc/pgcellar/pgcellar.yaml

To revoke a key, delete its entry in api_keys:.

Give each program its own key and the smallest role that works: a monitoring tool needs viewer, a script that triggers backups needs operator.

Calling the API

The base path is /api/v1. Authenticate with a header:

curl -H "Authorization: Bearer pgc_..." http://localhost:8080/api/v1/status

Every answer is JSON, either {"data": ...} or {"error": "..."}. A request body is JSON, limited to 64 KB, and unknown fields are refused.

Reading never runs Barman. GET routes answer from the status cache (refreshed every status_interval) and from Barman's files. Only an explicit POST calls Barman.

The main routes

GET    /api/v1/status                           cached state of every server
GET    /api/v1/servers                          list
POST   /api/v1/servers                          create (admin)
GET    /api/v1/servers/{name}                   one server with its state
PUT    /api/v1/servers/{name}                   update (admin)
GET    /api/v1/servers/{name}/setup             Server setup checks
GET    /api/v1/servers/{name}/timeline          what you can restore to
POST   /api/v1/servers/{name}/check             run barman check now (operator)
POST   /api/v1/servers/{name}/backup            run a backup now (operator)
POST   /api/v1/servers/{name}/switch-wal        force a WAL switch (operator)
GET    /api/v1/servers/{name}/backups           list backups
DELETE /api/v1/servers/{name}/backups/{id}      delete a backup (admin)
POST   /api/v1/servers/{name}/recoveries        restore to a directory (operator)
GET    /api/v1/servers/{name}/recoveries        restores of a server
GET    /api/v1/recoveries/{id}                  one restore
GET    /api/v1/recoveries/{id}/download         the .tar.gz (operator)
DELETE /api/v1/recoveries/{id}                  delete a restore (admin)
POST   /api/v1/servers/{name}/drills            run a drill now (operator)
GET    /api/v1/servers/{name}/drills            drills of a server
GET    /api/v1/drills                           drills of all servers (?server=, ?limit=)
GET    /api/v1/drills/{id}                      one drill with its steps
GET    /api/v1/drills/{id}/report               the PDF report (operator)
GET    /api/v1/runs                             recent runs (?server=, ?limit=)
GET    /api/v1/runs/{id}                        one run with its output
GET    /api/v1/history                          git history of the configuration
GET    /api/v1/audit                            audit log (admin)
GET    /api/v1/alerts                           channels and journal (admin)
POST   /api/v1/alerts/test                      send a test message (admin)
GET    /api/v1/license                          edition, servers allowed and used
GET    /api/v1/ssh/authorized-keys              keys allowed to push WAL (admin)
POST   /api/v1/ssh/authorized-keys              authorise a key (admin)
DELETE /api/v1/ssh/authorized-keys              revoke a key (admin)

The complete description, with parameters, bodies, schemas and the role each route needs, is served by pgCellar itself, as OpenAPI 3:

GET /api/v1/openapi.json

That route needs no key. Load it in Swagger UI, Postman or your generator of choice. It is always the description of the version you are running.

Examples

Is everything fine?

curl -s -H "Authorization: Bearer $KEY" http://localhost:8080/api/v1/status | jq '.data.servers[] | {name, level}'

Back up now and follow the run:

RUN=$(curl -s -X POST -H "Authorization: Bearer $KEY" http://localhost:8080/api/v1/servers/pg-main/backup | jq -r .data.run_id)
curl -s -H "Authorization: Bearer $KEY" http://localhost:8080/api/v1/runs/$RUN | jq '.data | {status, exit_code}'

Create a server:

curl -s -X POST -H "Authorization: Bearer $KEY" -H "Content-Type: application/json" \
  http://localhost:8080/api/v1/servers -d '{
    "name": "pg-main",
    "backup_method": "postgres",
    "wal_method": "streaming",
    "conninfo": "host=pg-main.example.com user=barman dbname=postgres",
    "streaming_conninfo": "host=pg-main.example.com user=streaming_barman dbname=postgres",
    "slot_name": "barman"
  }'

Whatever the console does, the API does: both are thin layers over the same code. An automation tool can configure and operate pgCellar without a browser.
